İnterpump Pump Seal

09 Nisan 2018
220 kez görüntülendi
İnterpump Pump Seal

İnterpump Pump Seal Price : 25 $

Product code : İNTERPUMP3


In order to arrange the felts of the inter pump pump to the pressure pump,

How does the washing machine felt tool change? Felt change of pressure wash pump

Interpump Pump Seal

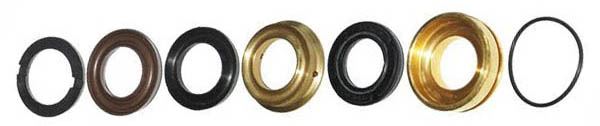

Annovi Reverberi AR Pump Seal; 3 high pressure felts, 3 high pressure felts support, 3 water felts and 3 water felts support.

Pump Seals with time-consuming and improper handling wear;
Water in the pump mixes with water, causing the pump to operate with oil that is not oil-free. This damages the crankshaft, ceramic piston rods, connecting rods, pump bearings.
The pump causes water leakage from the front block, ie water leakage.
Pressure causes your pump to fall and you can no longer perform well on your machine.
Why do the felts of your pressure pump become worn and damaged, distorted?
If your pump freezes during winter months, your pump felts will become worn and damaged.
If your pressure pump has less than 15 liters of water per minute, that is if your pump is working with little water. (The water from the pump flows at least like mains water.)
If the incoming water comes from the well water, but the pressure pump does not use the water filter with the competence feature and the large size.
If the pump comes with dirty water and you are not using a filter.
If you have run your washing machine without water, sometimes the machine can be turned on without opening the water. That is 1500 times per minute ceramic piston will pass through the felts as anhydrous, and because the felts work without water, they will burn without friction.
How do I change the pressure and water felts in the washing machine?
STEP 1: Remove the pump head bolts using a suitable wrench.

Remove the head proportionally by clicking with a plastic hammer (cross hitting).

basinc-kecesi-2

TEP 2: If you do not have a suitable extractor, you can use a screwdriver as a lever.

Certainly do not rub your bed.

* You will have to change the felt bed even if you draw too little.

basinc-kecesi-3

STEP 3: Replace the O-rings of the pad bearings.

basinc-kecesi-4

STEP 4: Place the felt, felt supports and pad bearings in the pump respectively

Note: Grease the pad bearings slightly.

basinc-kecesi

STEP 5: Things to be careful when installing the pump front block after changing the seal

basinc-kecesi-41

Turn the crank until the middle piston reaches the upper dead point. Grease the ceramic part of the pistons and hold the head at the proper angle to the pistons.

STEP 6: Things to be careful when installing the pump front block after changing the seal

basinc-kecesi-5

*Grease the ceramic part of the pistons and hold the pump head at the proper angle to the pistons.

* Install stud bolts and washers and gently tighten with allen key.

* Do not neglect to put stamps otherwise you will damage the screws of the brass block.

* When tightening the stud bolts, do not squeeze anyway, so the screws are crosswise tight


Please visit our Machine Repair Workshop we have prepared for you in this and all similar technical issues. We teach you to fish. Now that your cleaning machines are broken, we want to end the search for the mechanic and service. Now click on the image below to repair your own cleaning machine yourself.

makine-tamir-atolyesi-1

The machines are of course degraded, after all, everything has a life. It is important to make the defective machine work again in a short time and prevent it from being damaged again due to the same fault. Use a little more conscious.
